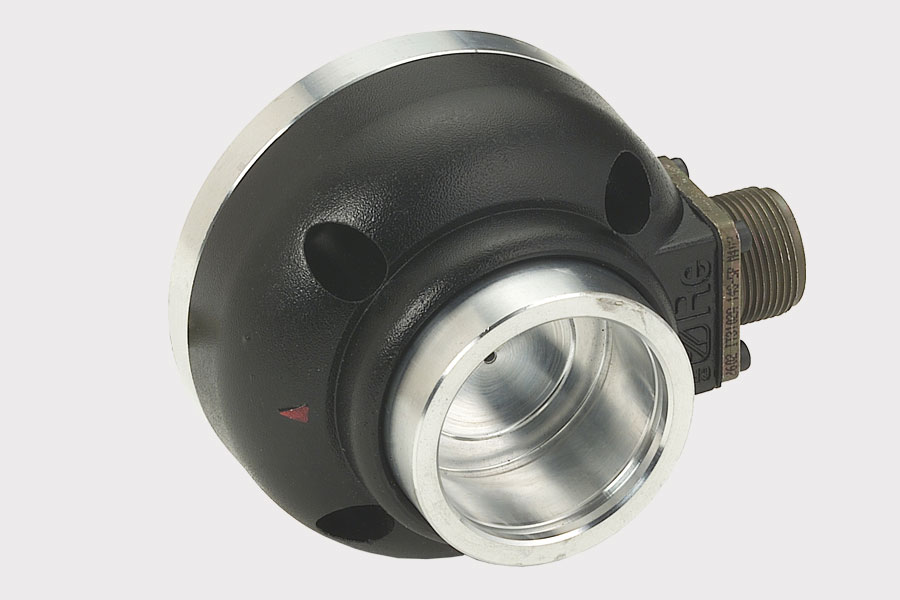

Flange load cells, the most widely known and frequently used on converting machines, are available in a number of models, available loads range from 50 up to 25000 N. The output is available as a voltage in mV or a current 4 – 20 mA. CF represents the fastest and cheapest system for measuring and checking the tension of laminates.
Technical data
| Precision class |
|
0,5% |
| Sensitivity |
Normal
Supply |
from 1,5mV/V to 2,0mV/V
10V - max 15V |
| Total error-repeatability-histeresy-linearity |
|
< ± 0,05% end scale value
|
| Measuring principle |
|
strain gauge full bridge |
| Strain gauge bridge resistance |
|
350Ω Ohm |
| Max overload |
|
300% |
| Temperature range |
|
0°C / +60°C |
| Option |
|
4-20 mA output |
| Load cell model |
Load - N |
| CF.70 |
250 - 500 - 1000 |
| CF.85 |
50 - 150 - 250 - 500 - 1000 - 2000 |
| CF.120 |
250 - 500 - 1000 - 2000 |
| CF.125 |
500 - 1000 - 1750 - 2500 |
| CF.130 |
500 - 1000 - 2000 - 5000 |
| CF.200 |
5000 - 10000 - 15000 - 20000 - 25000 |
Download
| |
Datasheet |
Drawing PDF |
Drawing Dwg |
3D |
User manual |
| CF.70 |
 |
|
|
|
|
| CF.85 |
|
|
|
|
|
| CF.120 |
|
|
|
|
|
| CF.125 |
|
|
|
|
|
| CF.130 |
|
|
|
|
|
| CF.200 |
|
|
|
|
|
