Product info

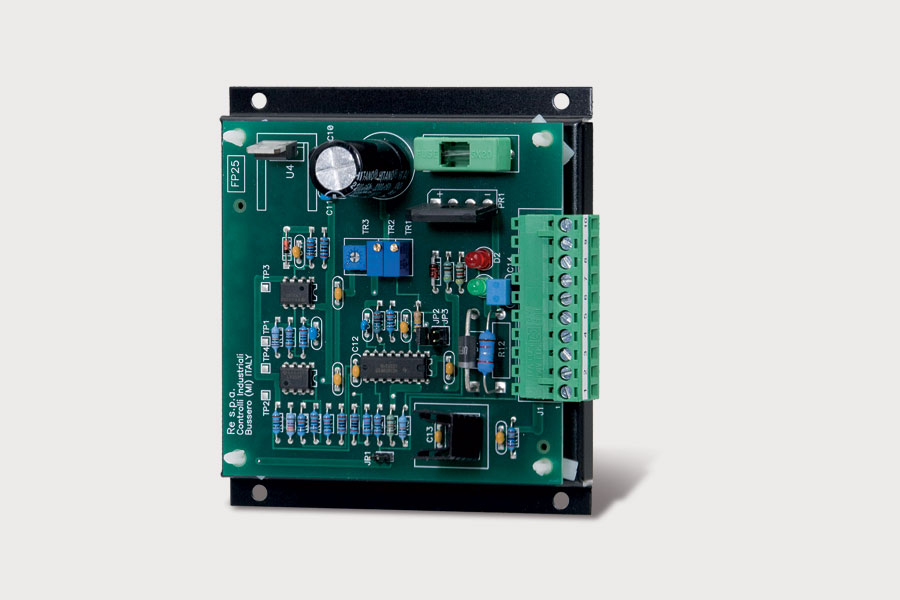

The FP.25 board is an analogue current regulator for electromagnetic powder brakes that ensures a perfect stability of the torque regulation. FP.25 is available with or without transformer and it can be used also with systems using the dancing roller.
Technical data
| Voltage supply FP.25/1 |
24 Vdc (+- 10%) |
| Voltage supply FP.25/2 |
110/220 Vac - 50/60 Hz - Fuse 3,15 A/T |
| Power |
30 W max |
| Input |
0÷10 Vdc |
| Output |
0÷2 PWM |
| Current limiter |
TR1 da -50% a +50% |
| Polarization |
TR2 da 0% a 100% |
| Working temperature |
0÷50°C |
| Dimensions |
63x120x108 mm |
