Product info

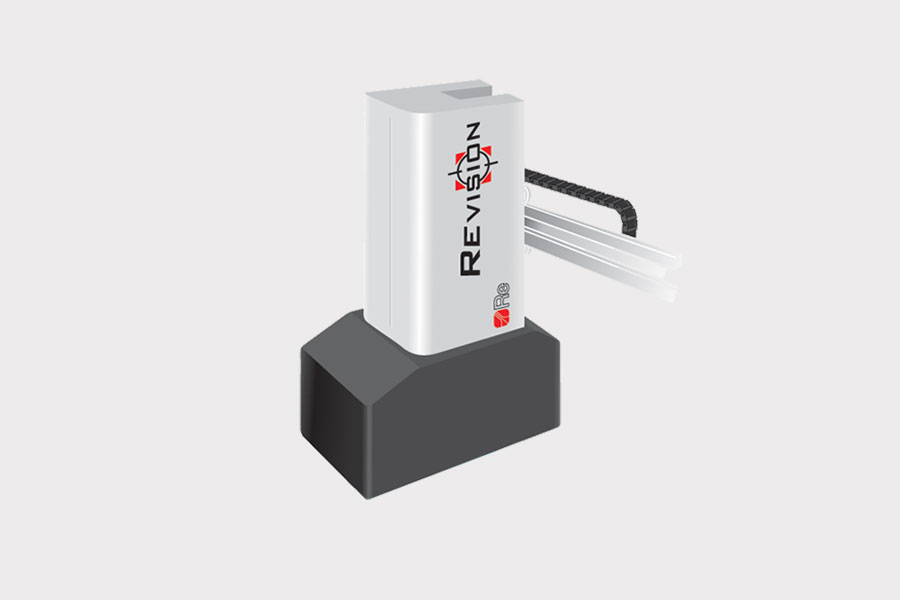

The web viewing system ReVision II Leonardo is available in two different sizes: 75 (field of vision 75x90mm) and 100 (field of vision 100x130mm), usually used for flexographic and rotogravure printing machines and for particularly demanding users who need a high-quality product in order to obtain a nearly perfect printing performance.
Leonardo is provided with a remote control or an integrated keyboard and has a 20X zoom (10X analogue + 2X digital). This version can store up to 8 pictures in 10 different folders, obtaining an archive of 80 pictures for the direct comparison during the printing process.The Ethernet gate allows you to download pictures on a connected computer.
It is possible to store and scan up to 8 pictures/positions and to reconstruct the entire printing process adding a second proximity sensor or using an encoder.
Technical data
| |
LD75 |
LD100 |
| Viewing area (mm) |
75x90 |
100x130 |
| Movement |
motorized |
motorized |
| Double camera (front/back) |
optional |
optional |
| External strobe lamp |
optional |
- |
| Picture reconstruction |
- |
included |
| Scanning of 8 pictures/positions |
included |
included |
| Optical zoom |
10x+2x |
10x+2x |
| Picture memory |
8+1 (x 10 file) |
8+1 (x 10 file) |
| Download over Ethernet gate |
included |
included |
| Bar code reader |
- |
optional |
| Touch screen |
optional |
optional |
| Lamp for UV inks |
optional |
optional |
| Colour density reference (RGB/CYM) |
included |
included |
